Infinique Cat.6A UTP Cable PE

Features

• Cat.6A UTP Solid Copper Cable PE
• 23AWG 4 Pair, Solid Copper Conductors
• ETL Verified, UL Listed, RoHS Compliant
• Channel Link 100 meters, 550 MHz Bandwidth
• Supports PoE, PoE+, and PoE++

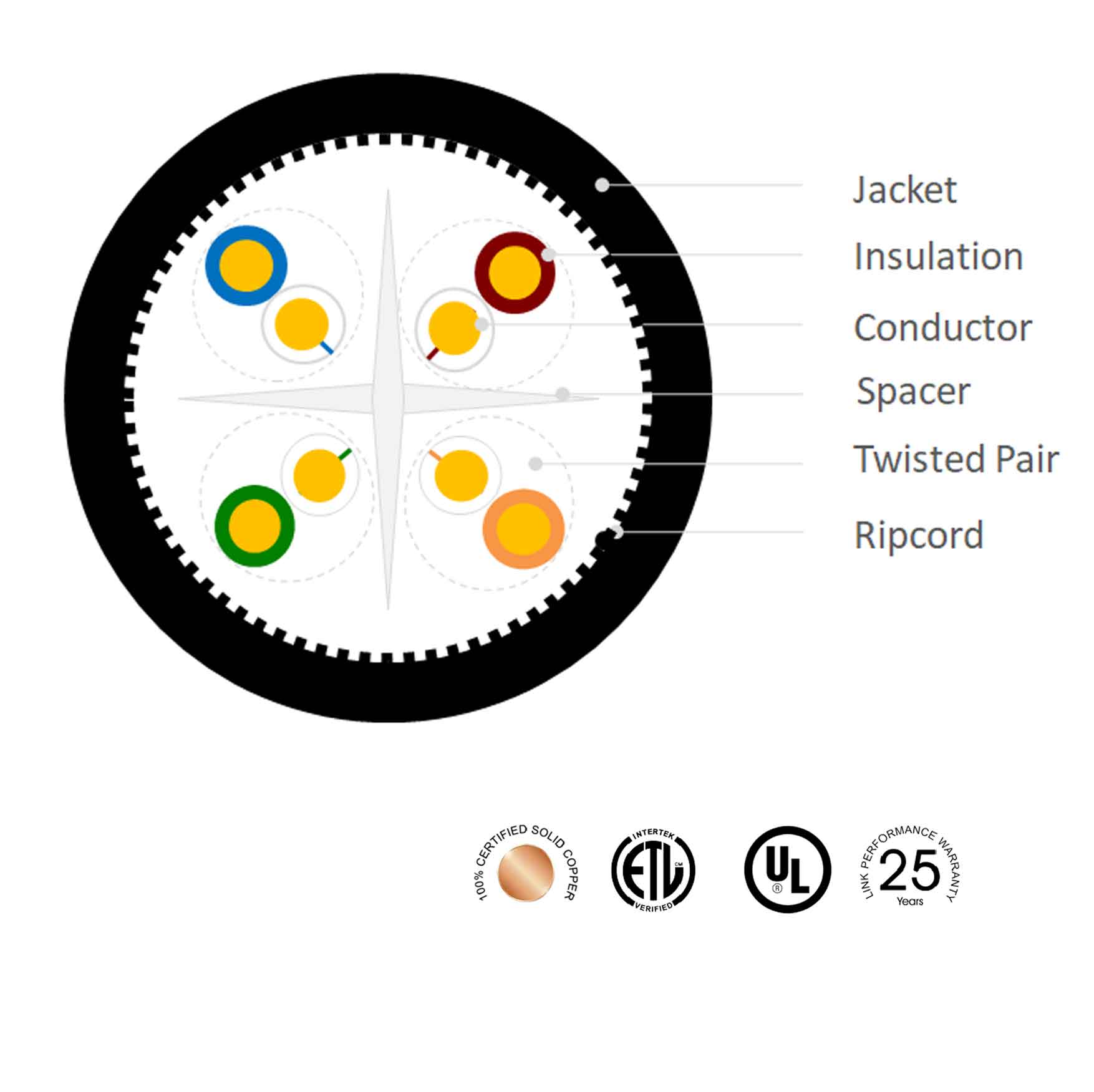

Infinique’s Category 6A (Augmented Category) UTP UL listed cable has been designed for high network performance of up to 550 MHz over distances of up to 100 meters. It provides a considerable margin above all electrical transmission performance requirements specified in ISO/IEC 11801 Class EA and ANSI/TIA-568C.2 standards and supports 10 Gigabit Ethernet (10GBASE‐T). The cable construction has tighter twists and in-built longitudinal separators to reduce alien crosstalk (AXT) coupling between adjacent cables.

Infinique’s Category 6A UTP Cable is also available with an LSOH jacket with flame retardant standards defined in IEC 60332‐1, and smoke emission standards IEC61034. These cables are supplied on 305 or 500-meter reels with sequential meter marking. Infinique Category 6A UTP Cable is backward compatible and provides flexibility to protect network investments well into the future. With a guaranteed significant channel margin over the entire frequency range, from 1 to 500 MHz for the entire channel link, Infinique Cat.6A UTP cable can transmit data, voice, video and PoE Power over Ethernet standard (POE 802.3af) allowing data and power connection for POE equipments. It is certified to the ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA standards and supports applications such as Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet as specified in 10GBASE-T standards), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM and Token Ring 4/16.

Datasheet

Infinique Cat.6A UTP Cable
