Category 8.1 S/FTP Cable 25G/40G

Category 8.1 Shielded Foiled Twisted Pair Cable, RoHS Compliant

Features
  • Cat.8.1 SFTP Solid Copper Cable LSOH
  • EC Verified IEC 61156-5:2020, TIA-568.2-D:2018 Category 8.1
  • 2000 MHz for 30 m Channels 25G/40G (25GBASE-T/40GBASE-T)
  • Flammability, Halogen Acidity and Smoke Performance
  • Supports PoE, PoE+, and PoE++
Description

Infinique’s Category 8.1 cable confirms to performance requirements of IEC 61156-5:2020, TIA-568.2-D:2018 up to 2000 MHz to support 30 meter Channels in IEEE 802.3bq 25 Gbps (25GBASE-T) and 40 Gbps (40GBASE-T) applications in the data center, PoE, PoE+, PoE++ applications. Combined with Infinique’s Category 8.1 Keystone Jacks and Patch Cords, we deliver a complete end-to-end solution that confirms to the ISO/IEC and TIA Category 8.1 specifications for 2-connector 30-meter channels for 25 Gbps and 40 Gbps applications.

Reliable Performance

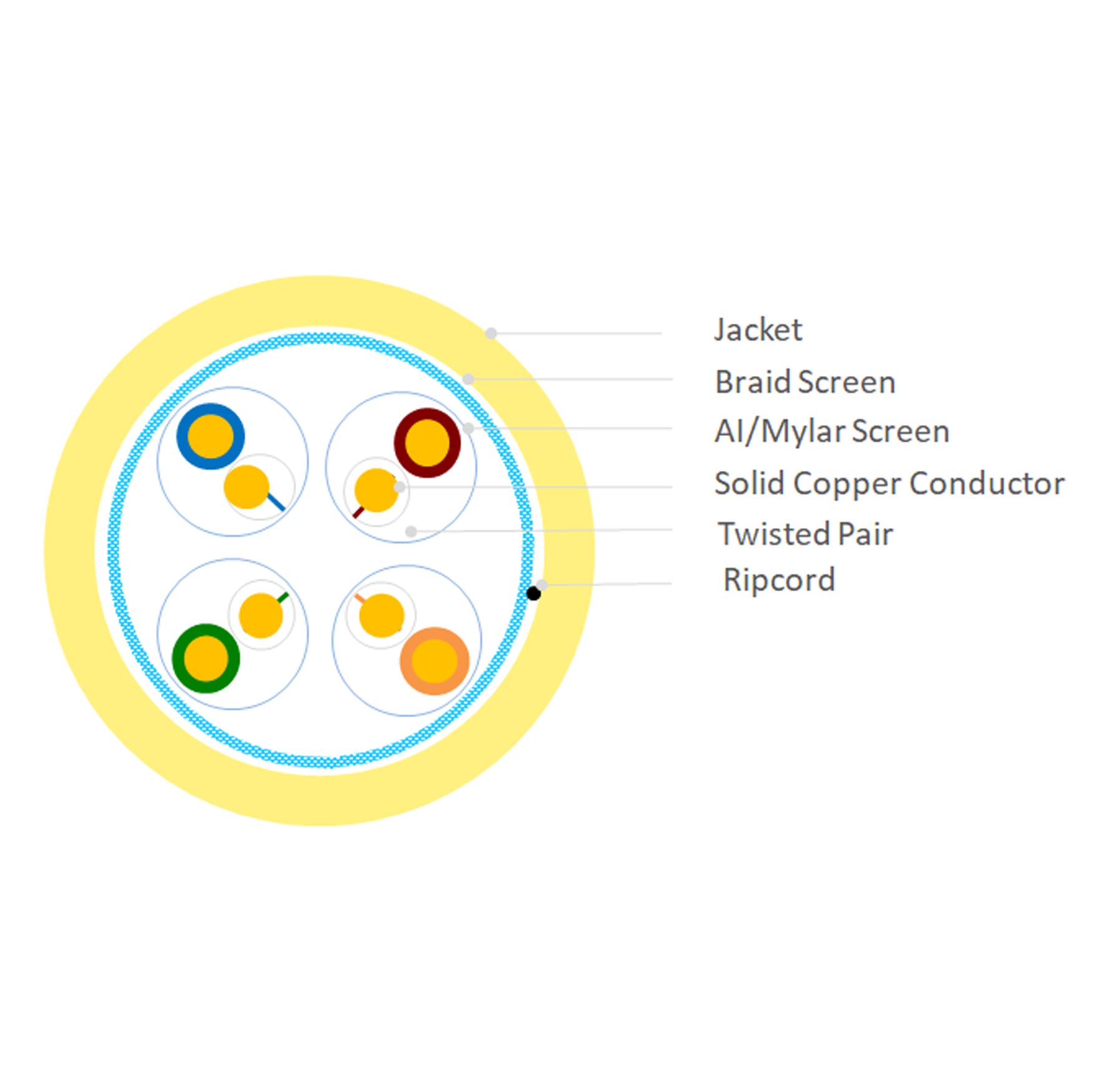

It also complies with flammability, halogen acidity and smoke performance standards of IEC 60332-1-1:2015, IEC 60332-1-2:2015, IE 60754-2:2019, IEC 61034-1:2019, IEC 61034-2:2019. Category 8.1 is a fully shielded cable with construction that has tighter twists, its 4-pair construction with each individual pair surrounded with aluminum foil screen and outer braid screen provides superior noise immunity and coupling attenuation between adjacent cables and provides extra margin of performance required for high bandwidth applications. The Category 8.1 S/FTP Cable collectively with other Infinique’s Category 8.1 S/FTP solution is the right solution for data center and other applications where data transmissions at very high speeds of 2000 Mhz is required. The Category 8.1 S/FTP Cable is offered in reels to accommodate easy deployment.

Performance Level Category 8.1
Performance Standards EC Verified for performance as per IEC 61156-5:2020, TIA-568.2-D:2018 Category 8.1 Standards
Environment Indoor
Cable Type SFTP
Cable Pairs 4
Cable Pairing Pair 1: Blue, White-Blue; Pair 2: Orange, White-Orange,; Pair 3: Green, White-Green; Pair 4: Brown, White-Brown
Flammability Rating LSOH IEC 60332-1
Conductor Material Solid Copper
Conductor Gauge (AWG) 23
Conductor Insulation Material Halogen Free Foam, Skin F-PE
Conductor Insulation Diameter (mm) 1.48
Conductor Insulation Thickness (mm) 0.3875
Rip Cord Material Nylon Thread
Outer Jacket Material Flame Retardant High Density Polyethylene
Outer Cable Diameter (mm) 8.0
Color Yellow, RAL 1026
Bend Radius (mm) 8 x OD
Pulling Tension Max 110N (25lb)
Operating Temperature (C) -20 to 60
Installation Temperature (C) 0 to 60
Packaging Type Reel
Packing Unit 500 meters
