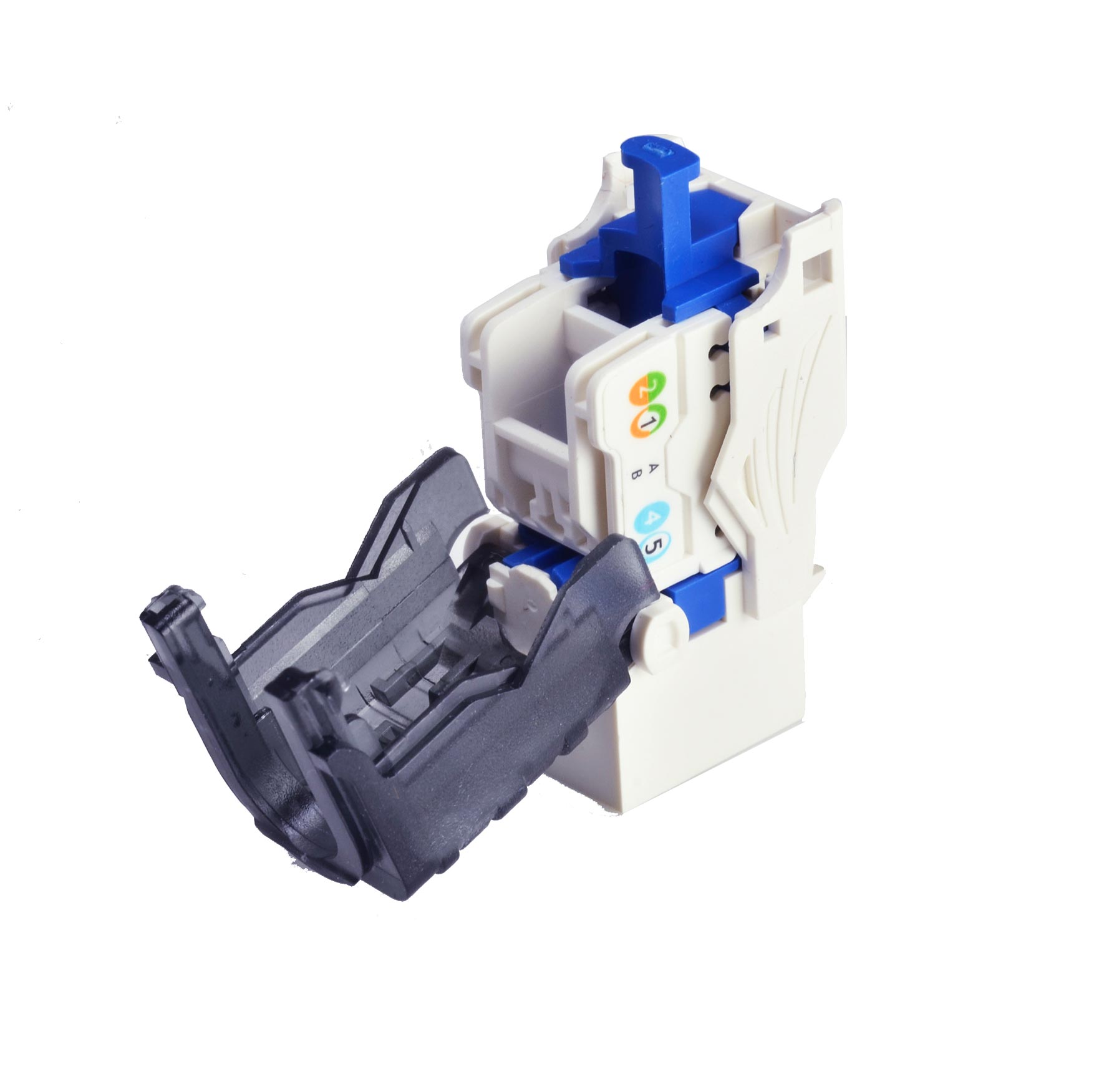

Infinique Cat.6 UTP Tool-Less Keystone Jack

Cat.6 UTP 90 Degree Tool-Less Keystone Jack, ETL Verified

Features
  • Cat.6 UTP 90 Degree Tool-Less Jack
  • ETL Verified for Performance
  • ANSI/TIA-568-C.2, ISO/IEC 11801 Standards
  • T568A and T568B Universal Wiring Schemes
  • Accepts 22- 26 AWG Conductors
  • Aesthetic and Slim Profile with Dust Covers
  • UL94V-0 Material, RoHS Compliant
Description

Infinique’s Category 6, 90 Degree Tool-less Keystone Jacks ensure high performance and easy installation. They are of universal design and support both T568A and T568B wiring. Electrical performance of these jacks are guaranteed to meet or exceed the category 6 channel specification. They maintains the twist to the point of termination and allow for quick and easy tool-less termination of 22 to 26 AWG cable.

Reliable Performance

The additional bend limiting strain relief cover provides cylindrical support to limit the bend radius at the point of termination. These high quality keystone jacks can be snapped into any of Infinique’s face plates and floor mount brackets.

Performance Level Category 6
Performance Standards ETL Verified to ANSI TIA-568-C.2, ISO IEC 11801 and EN 50173-1 Category 6
Application Indoor
Jack Type UTP
Connector Type RJ45
Wiring Scheme T568A/T568B
Contact Material Copper
Jack Body Material Polyphenylene Oxide UL 94V-0
Durability 750 Mating Cycles
Connector IDC Connector (insulation Displacement Contact)
Connector Material Phosphorous Bronze with 150micron Tin-Lead over 50micron Nickel undercoat
IDC Material Phosphor Bronze with 50micron Gold over 100micron Nickel Undercoat
IDC 110 Contacts 200 terminations
Admissible Wire Diameter 22 - 26 AWG
Admissible Insulation Diameter 0.70 - 1.40 mm
Color White, RAL 9001
Operating Temperature (C) -20 to 60
Storage Temperature (C) -20 to 75
Packaging Type Polythene Bag
Packing Unit 10 units
