Infinique IND711Z-RWTN Network Dome Camera

2MP Full HD WDR Dome with Motorized Lens and IR Night Vision

Features
  • 1080p resolution upto 30 fps
  • Supports H.265 and H.264 Compression
  • Night vision up to 30 meters with IR
  • 130dB True WDR
  • Micro SD Card Slot for Onboard Storage
  • 3 Axis Bracket helps mount on wall or ceiling
  • ONVIF Compliant for easy integration
Description

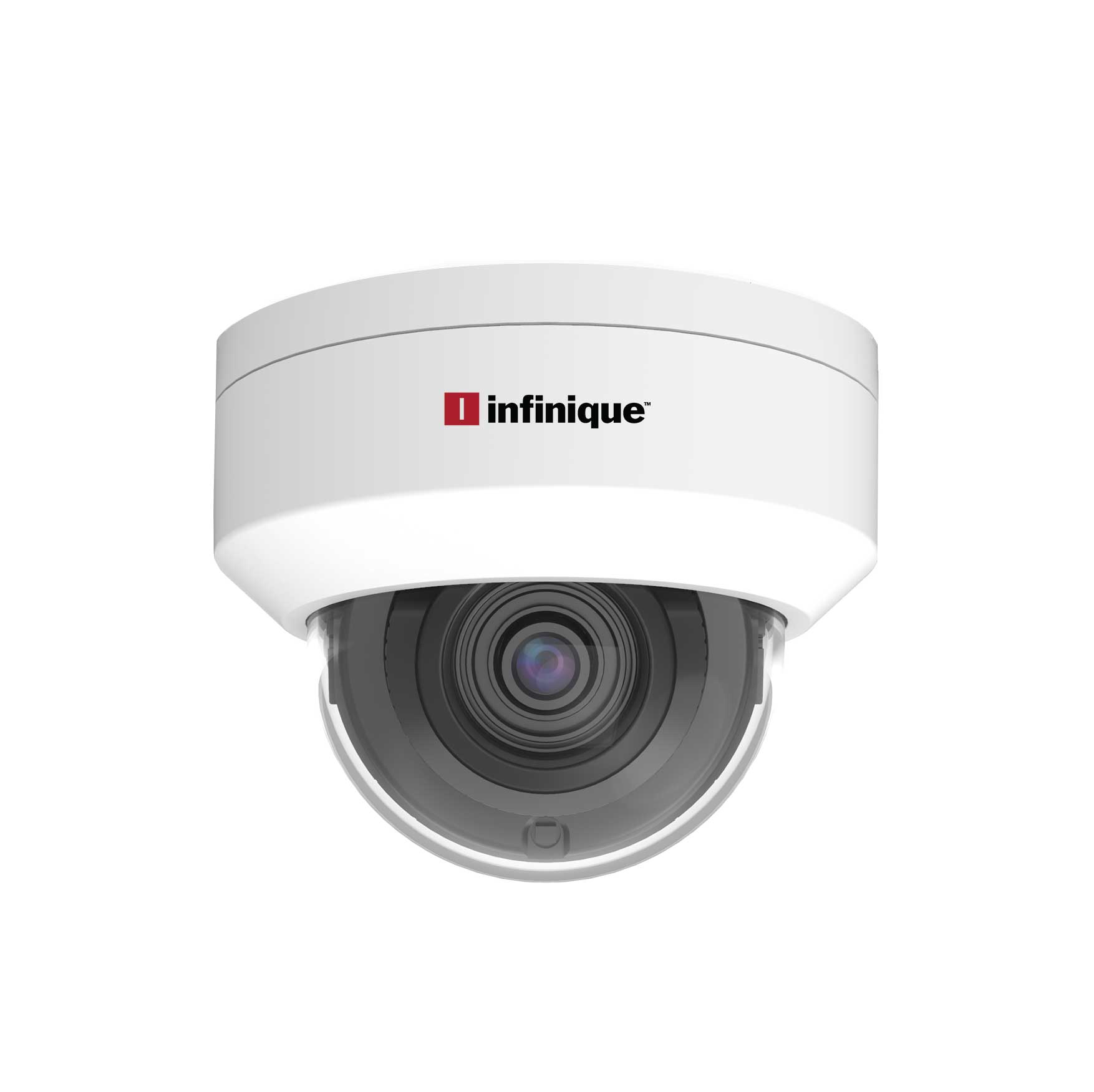

The IND711Z-RWTN is a 2 Megapixel 130dB WDR IR Dome Camera with Motorized Zoom. It is built with a sturdy plastic housing, incorporating a 1/2.8” high quality image sensor and IR LEDs to provide clear crisp images both during the Day and Night.

Compact, Robust and Cost Efficient

The camera comes equipped with 2.8 - 8mm motorized zoom lens for easy setup of field of view. The auto iris control allows the camera to automatically set its iris position to maximize image quality in all lighting conditions. The camera streams real-time video at high definition resolution using H.264 or H.265 compression optimizing the bandwidth and increasing storage efficiency. Built-in PoE for powering the camera and the flexible 3-axis bracket for fixing it on ceiling or wall, provides the convenience for installers to complete the installation quickly and with ease. These versatile cameras are highly suitable for video surveillance of government buildings, residential apartments, schools, colleges, universities, shopping malls, hospitals, hotels, industrial parks, and corporate offices.

Sensor 1/2.8
Effective Pixels (H x V) 1920 x1080
Resolution (Megapixels) 2
Minimum Illumination 0.002 lux, 0 lux with IR on
Maximum FPS 30
Night Vision Yes
IR Range (meters) 30
Focal Length (mm) 2.8 to 8
Iris DC Auto Iris
Lens Type Motorized Zoom
Remote Zoom Yes
Remote Focus Yes
Angle of View (deg) H:105 (Wide)~46 (Tele), V:56 (Wide)~26 (Tele)
Video Compression H.265, H.264
Video Streams Main, Sub, Mobile
WDR True WDR, 130dB
Day and Night Control True Day/Night with IR Cut Filter
Corridor Format Yes
Motion Detection Multiple Zones
Advance Analytics Tamper, Out Of Focus, Sound, Perimeter Intrusion, Line Crossing, Stationary Object, Pedestrian Detection, People Counting, Face Detection
Storage Type Micro SD Card, Max up to 128GB
Network Port 10/100M BASE-TX, RJ-45 Connector
ONVIF Compliant Yes
Security User Access with password protection, IP Filtering
Users Multi-level
IP Filtering Yes
HTTPS Yes
IEEE 802.1X Yes
Simultaneous Viewing Up to 5 users
Housing ID V4DIPWH660730S2
Dimensions (mm) 120(D) x 91.6(H)
Weight (g) 390
Vandal Resistant Yes
Housing Material ABS Plastic
Color and Finish White, RAL 9003
Installation Ceiling, Wall Mount, 3-Axis Bracket
Ingress Protection Rating IP66
IK Rating IK07
Power Consumption 440mA, 5.28W
Power Source PoE IEEE802.3af, DC 12V
Operating Temperature (C) -20 to +60
Audio Yes
